REVASRI Laser Rangefinder 1000M Hunting Range Finder with Rechargeable Battery Outdoor Target Acquisition Technology Monocular
REVASRI Laser Rangefinder 1000M Hunting Range Finder with Rechargeable Battery Outdoor Target Acquisition Technology Monocular
SPECIFICATIONS
Accuracy: ±1m
Application: Hunting or Golfing
Battery Included: Yes
Brand Name: REVASRI
Certification: CE,RoHS
Choice: yes
Focusing method: Manual focusing of eyepiece
High-concerned chemical: None
Laser hazard level: Class 1（<1mW）
Magnification: 6X Magnification
Measurement Accuracy: ± 1m
Model Number: Laser Rangefinder
Origin: Mainland China
Power Source: Rechargeable
Power Type: Rechargeable
Product Name: Hunting Rangefinder
REVASRI Model: NK-1000

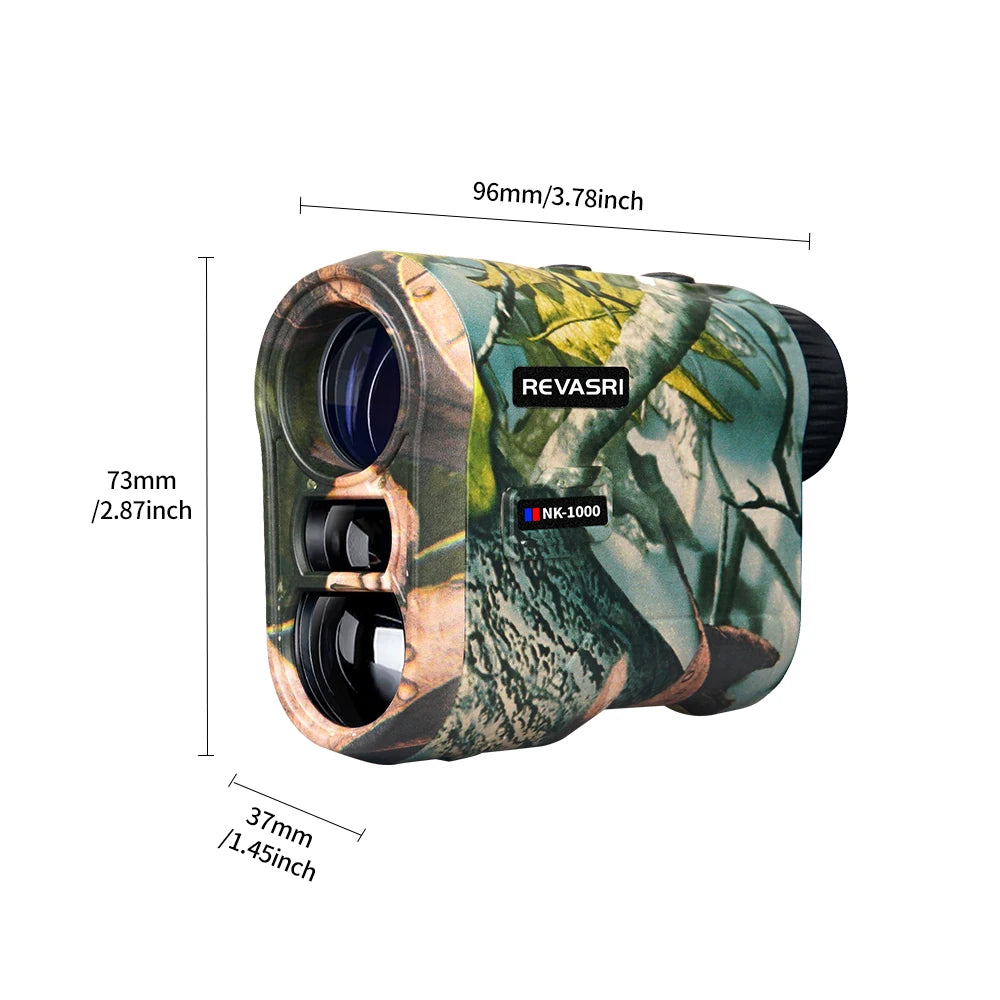

Size: 96 x34x67MM/3.78x1.34x2.64in
Units: Yard (Y) & Meter (M)
REVASRI Hunting Rangefinder Laser Range Finder for Hunting Camo 1000M/Yards Multi Functional Rangefinders Distance/Angle/Scan 6X Magnification Monocular Telescope for Hunting or Golfing
Precautions:
1. This rangefinder is designed for long-distance measurements, with a minimum measurement distance of 5 meters.
2. Glass can reflect the laser beam and affect measurement results. Do not measure through glass during use.
3.Rain, fog, and dusty conditions may obstruct laser transmission and affect the maximum measurement distance.When measuring objects, select light-colored buildings as the farthest target as possible. Complex vegetation on mountains can obstruct the reflection of laser signals.
4. In low-light conditions at night, additional lighting is required to view the readings, as the eyepiece display is not illuminated.
5. It supports 6x magnification, which can be adjusted to the appropriate magnification by manual rotating the eyepiece knob.
6. Measurements cannot be taken in storage mode. Press the M/Mode button to switch to other measurement modes for normal operation. Press the power button to view the previous 10 sets of measurement data.
Product Parameters
Ranging Method: Semiconductor laser ranging (safe to human eyes)

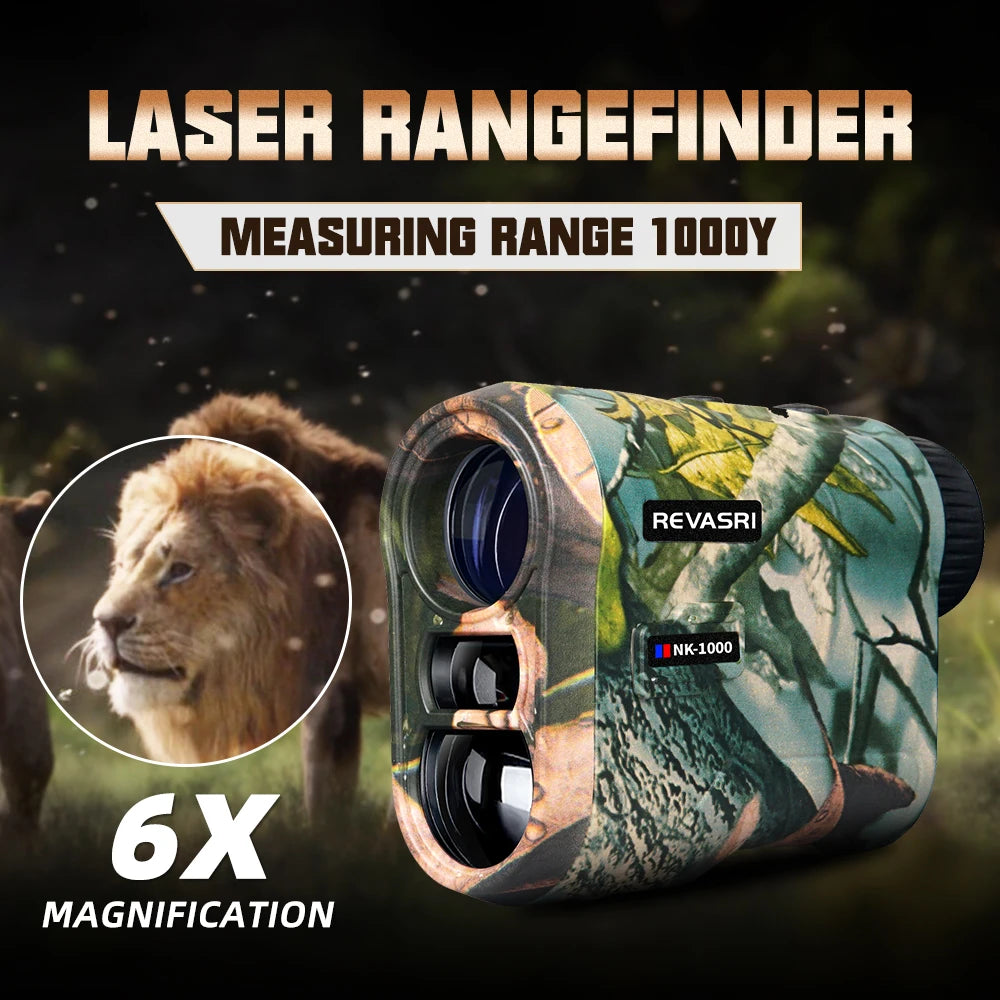

Range: 5-1000M/Yards
Ranging Accuracy: ±1M/Yard
Ranging Display Mode: In-view LCD display
Exit Pupil Diameter: 3.1mm
Exit Pupil Distance: 12.1mm
Working Temperature: -20~50℃
Operating Humidity: ≤80%
Laser Class: 905nm Class 1 Laser, Laser output <5mw
Power Supply: built-in Li-ion battery (3.7V)
USB Interface: Type-C
Focusing Mode: Manual Focusing
Eyepiece Lens Quality: Multilayer Coated
Magnification: 6X
Product Size:96x34x67MM/3.78x1.34x2.64in

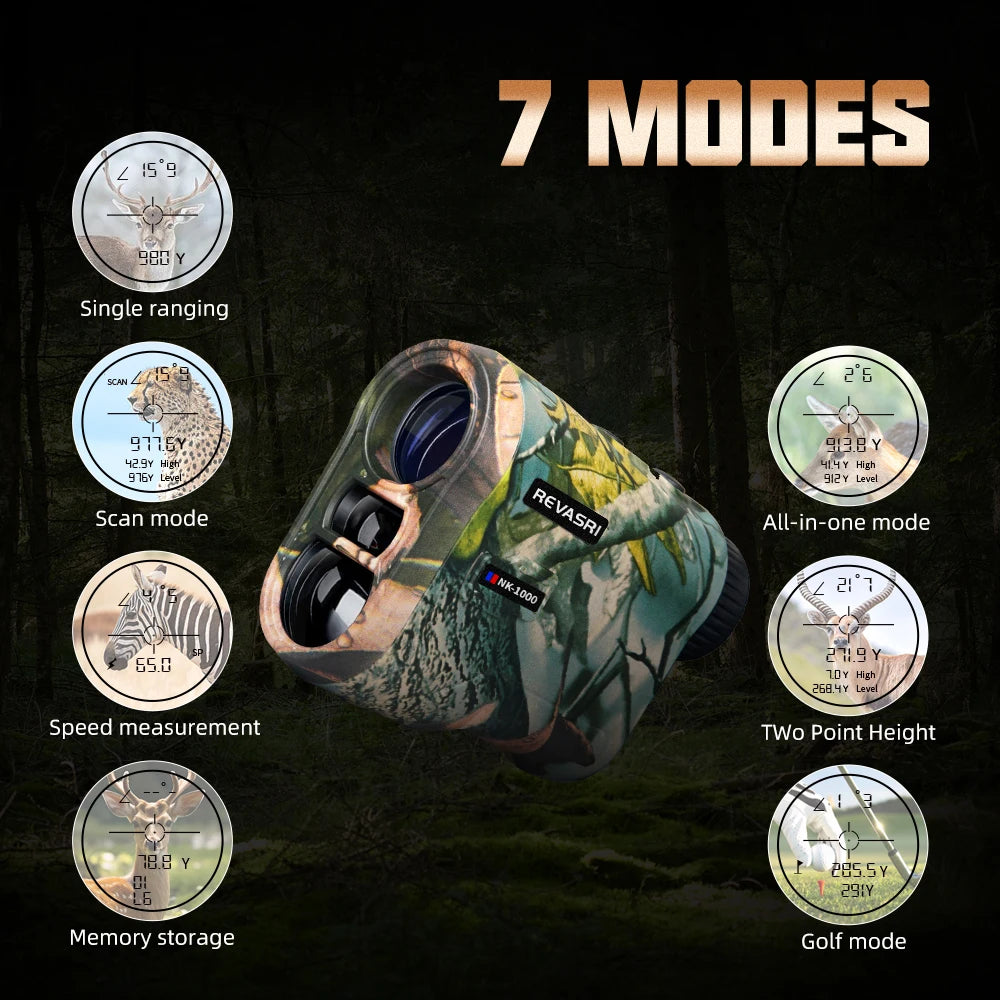

Measurement Mode:
① Measuring distance mode

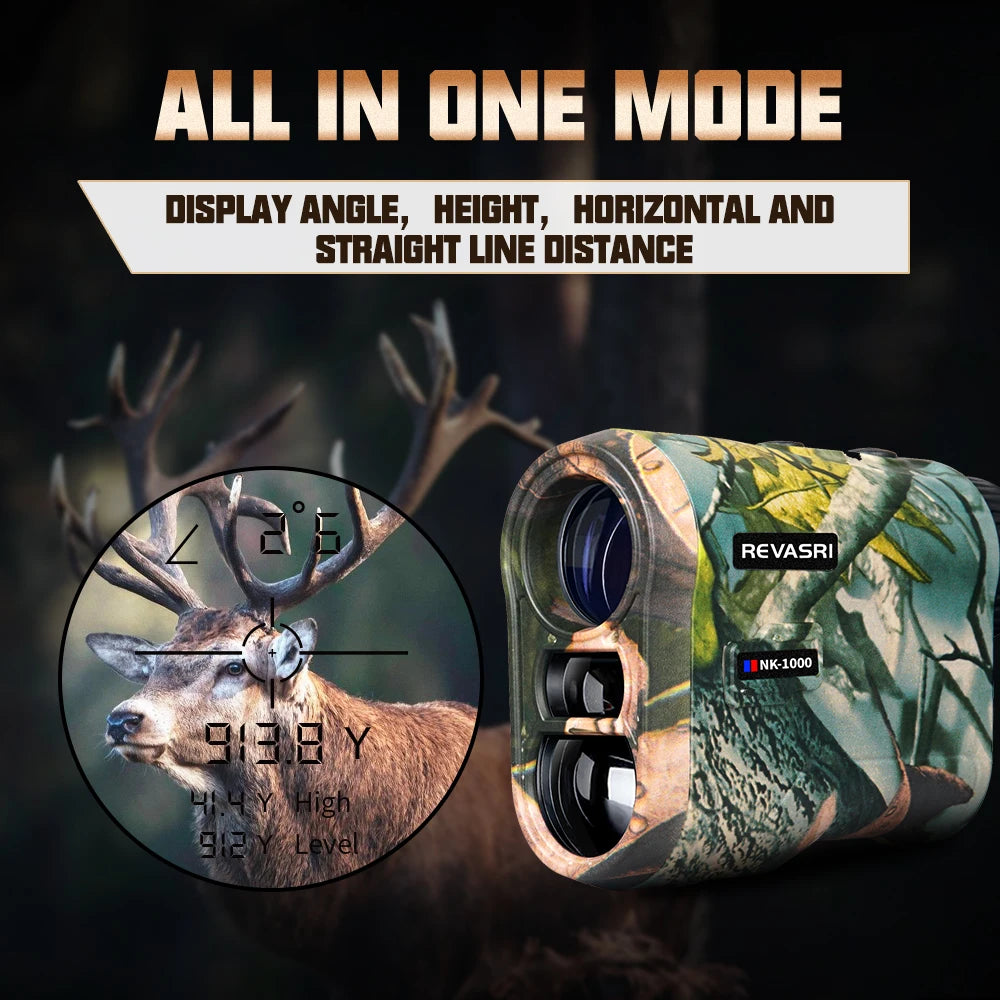

② All-in-one machine mode (angle/height/horizontal distance)
③ Scan mode
④ Two-point height measurement mode
⑤ Speed measurement mode
⑥ Golf mode(Angle/lope Compensation)
⑦ Data storage function
Measurements cannot be taken in storage mode. Press the M/Mode button to switch to other measurement modes for normal operation. Press the power button to view the previous 10 sets of measurement data.
Unit of measure: Yard (Y)&Meter (M):Press and hold the measurement button and the mode button simultaneously for 3-5 seconds.
Product Description

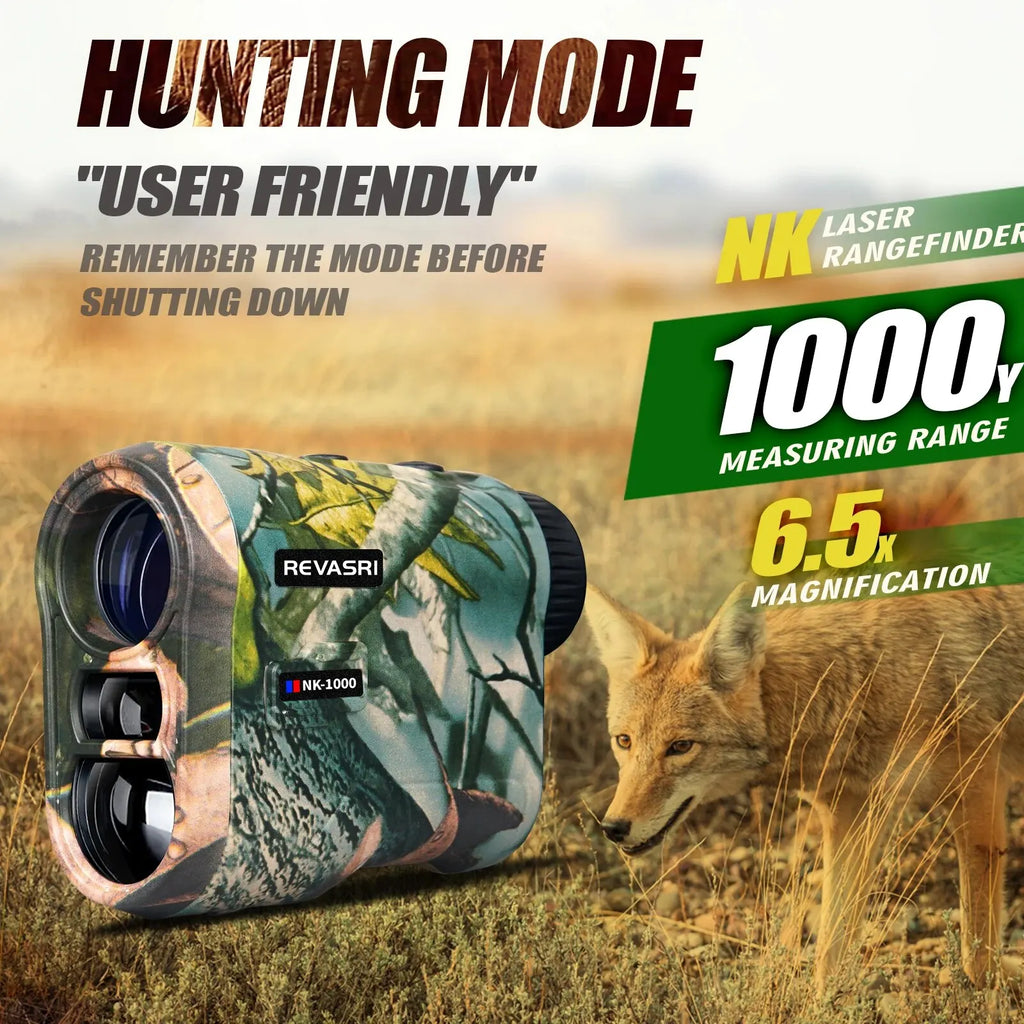

[Hunting Range Finder with Mode Memory]-This laser hunting rangefinder has 7 functions: ranging mode,all-in-one mode, scanning mode, speed measurement mode, two points height measurement mode, golf distance compensation mode and storage mode. This range finder has memory function which will open the mode you used before shutting down, which is convenient and effective.

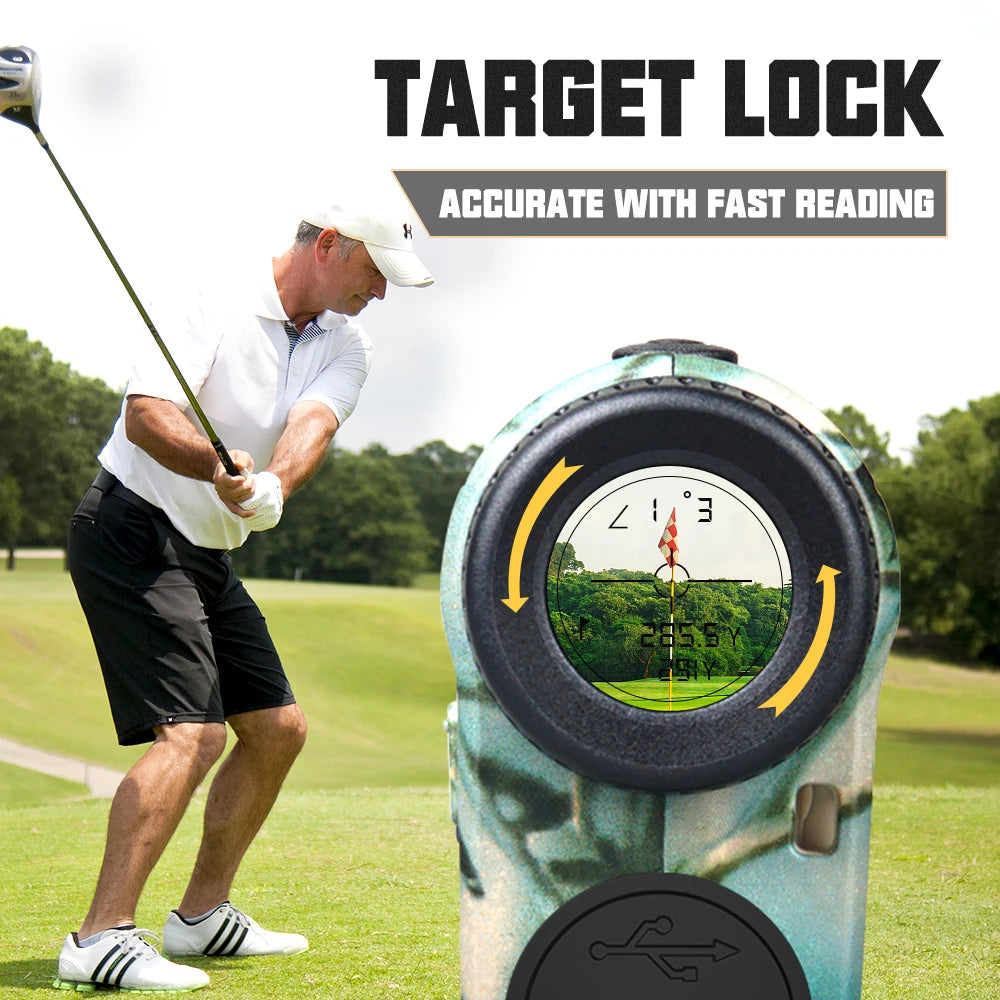

·[Measure Multiple Targets Continuously]- In continuous scan mode, you can measure multiple targets with one press. Angle, height, horizontal and straight-line distance will be displayed and changed continuously according to different targets. In golf mode, you can lock a target (prey, pin or anything else) easily by scan. Suitable for golfing and hunting in broad area.

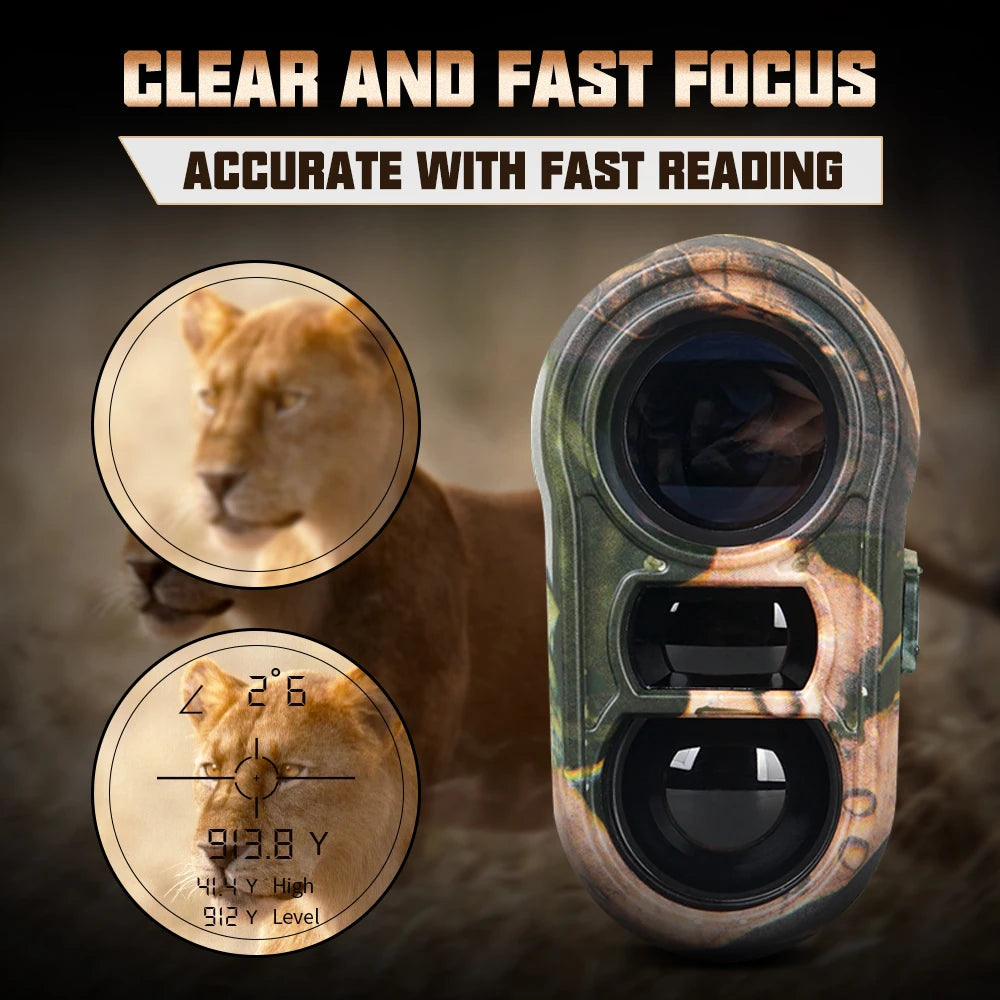

·[High Accuracy and Clear View]-High accuracy 1000 Yards laser range finder with 6X magnification. Multilayer coated glass lens and high end transmissive LCD dispaly enable it a bright clear view. You can see everything clearly even wearing eyeglasses. The range finder has +/- 1 Yard distance ranging accuracy and +/- 1 degree angle accuracy which is accurate enough for golfing shooting or hunting.
·[Rechargeable and Portable]- The rangefinder is equiped with rechargeable built-in Li-ion battery, charging is super easy. The product is compact, light weight and durable, the weight is only 4.94 ounces (140g) and size is 3.8*1.4*2.6 inches(96*34*67mm). With rain-proof, it's perfect for carrying while hunting or golfing or measuring outdoor. In the package it includes a bag , a lanyard, a lens cleaning cloth, an USB cable and manual.
Frequently Asked Question:
1.Why can't I get a reading?
The minimum range is 5M. If you use it in small rooms or through glass or other distance is out of it's range, it does not show distance.
2.Why the reading seems not as accurate as usual sometimes?
Rain, fog, strong light, heavy dust may influnece the transmission of laser to cause the problem. For small object, make sure you aim at the target not something in the background.
3.How to switch between meters and yards?
Press and hold the measurement button and the mode button simultaneously for 3-5 seconds.
